Product Name: Fully Automatic Horizontal Hydraulic Baler
Product Model:HTHB-160
Pressure:160T
Oil Pump: 50A38 Double Combination Pump
Electronic Control System: PLC Computer Automatic
Inlet Size:1100mm*2000mm
Outlet Size: 2000 (Adjustable) *1100*1250mm
Bale Density: 400-500kg/m3
Our Vertical And Horizontal Hydraulic Baler Description:
HUATAO supply the vertical and horizontal hydraulic baler. They are suitable for compressing and baling the waste paper (cardboard boxes, newsprint, etc.), waste plastics (plastic films, turnover boxes, PET bottles, etc.), straw and other loose materials.
Baled items not only greatly reduce storage space, but also lower transportation costs, and are beneficial for the recycling of waste materials.A hydraulic baler mainly consists of the host frame structure system, hydraulic system, and auxiliary components.

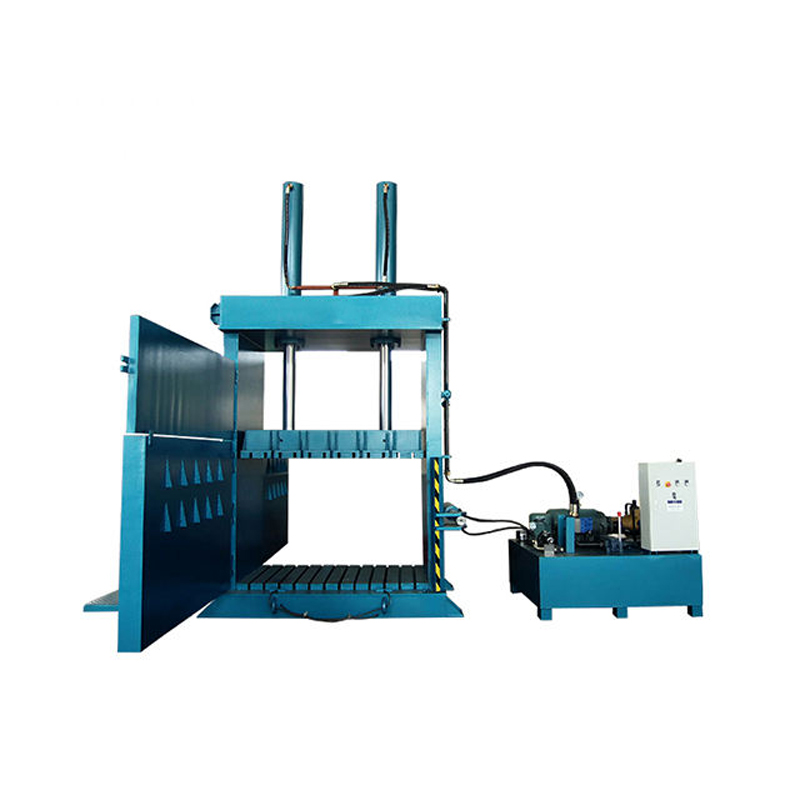

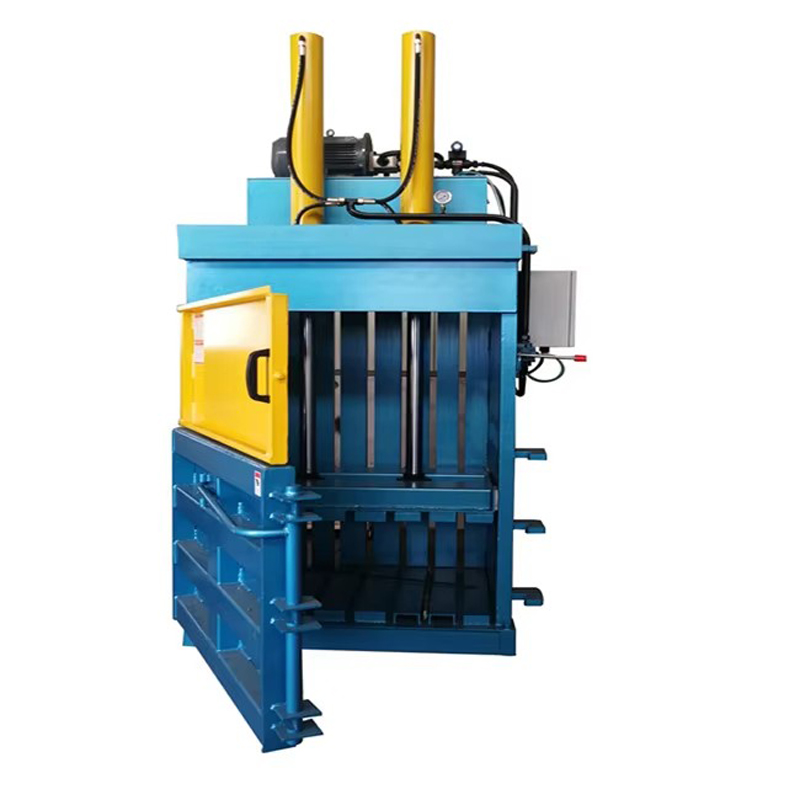

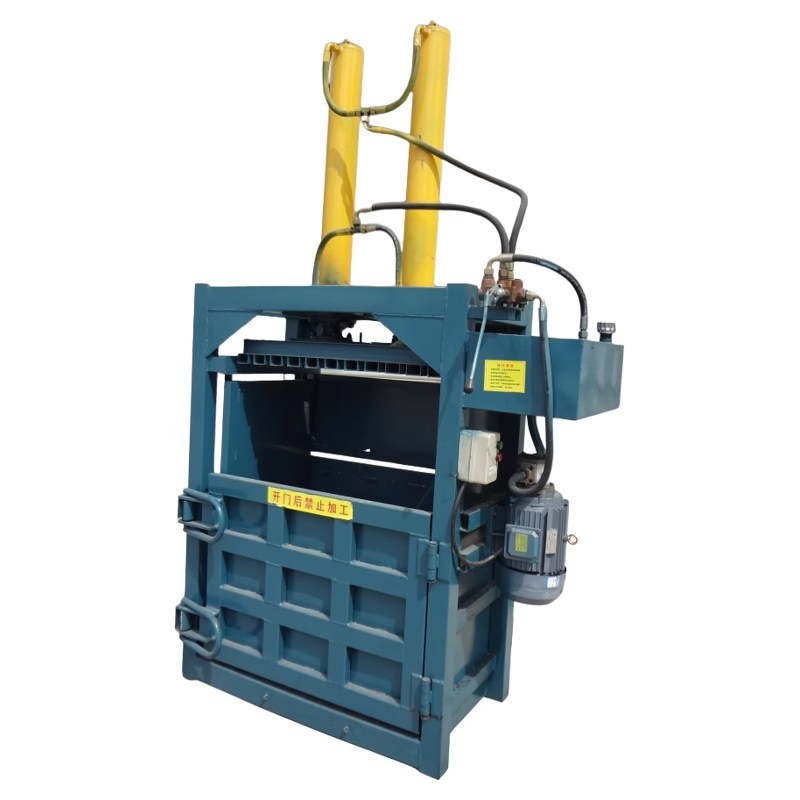

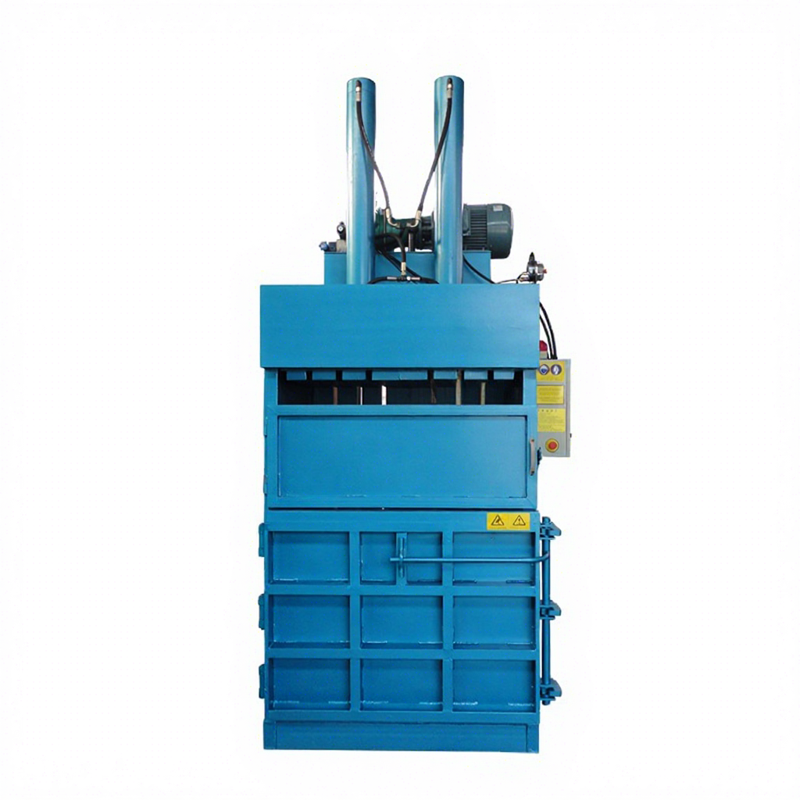

Vertical Hydraulic Baler Specification:
|
Type(pressure) |
30T（for film） |
60T |
80T |
80T |
100T（for cans） |
100T |
|
Bale size |
1*0.7*0.8m |
1*0.7*0.8m |
1*0.7*1m |
1.25*0.85*1.2m |
1.2*0.8m |
1.6*0.75*1.1m |
|
Power |
7.5kw |
11kw |
11kw |
11kw |
18.5kw |
18.5kw |
|
Weight |
About 1.68T |
About 2.48T |
About 3.48T |
About 3.58T |
About 4.86T |
About 4.86T |
|
Capacity |
400kg/hour |
600kg/hour |
600kg/hour |
800kg/hour |
1000kg/hour |
1000kg/hou |

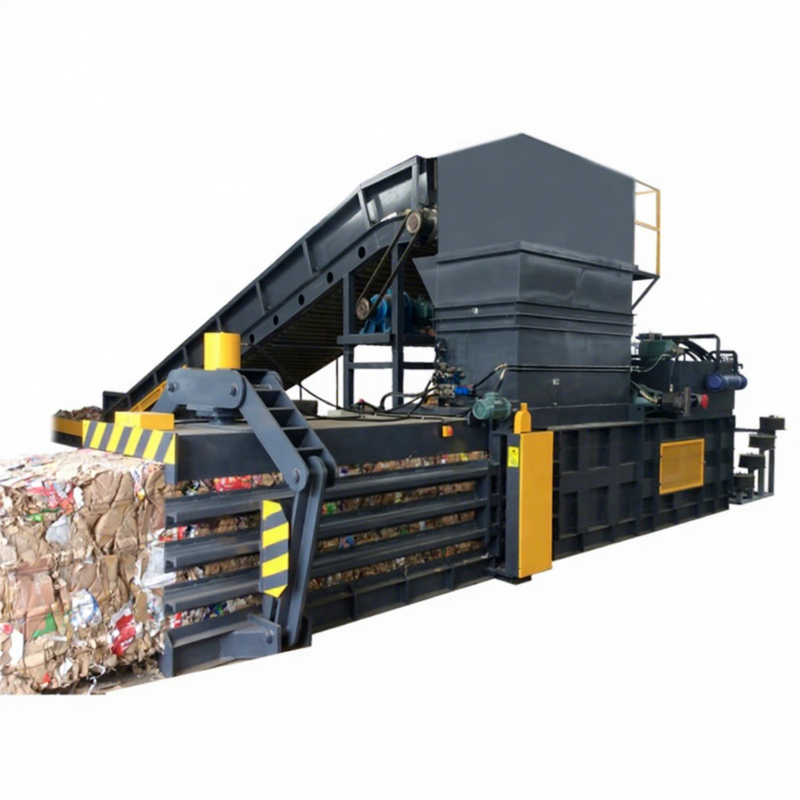

Horizontal Hydraulic Baler Specification:
|
Product Name |
Fully Automatic Horizontal Hydraulic Baler |
|
|
Product Model |
HTHB-160 |
HTHB-120 |
|
Pressure |
160T |
120T |
|
Oil Pump |
50A38 Double Combination Pump |
50A35 Double Combination Pump |
|
Electronic Control System |
PLC Computer Automatic Degree Infrared Sensor,Object Detection |
|
|
Inlet Size |
1100mm*2000mm |
1100mm* 1600mm |
|
Outlet Size |
2000 (Adjustable) *1100*1250mm |
1800(Adjustable) *1100*900mm |
|
Bale Density |
400-500kg/m3 |
400kg/m3 |
|
Capacity |
8-12T/H |
6-10T/H |
|
Power |
37KW+5KW+4KW |
30KW+4KW+4KW |
Hydraulic Baler Features:
1.Hydraulically driven, with manual operation or PLC automatic control.
2.Bale-discharging:"turn-out" , "push-out" , "foward-out" & manual discharging.
3.Installation of equipment without the need for anchor bolts for easy production or equipment layout adjustment
4.Can be equipped with diesel engine as backup power supply
5.Pressing from three side,pressed bales will have a higher density
6.Simple operation, efficient and safe
