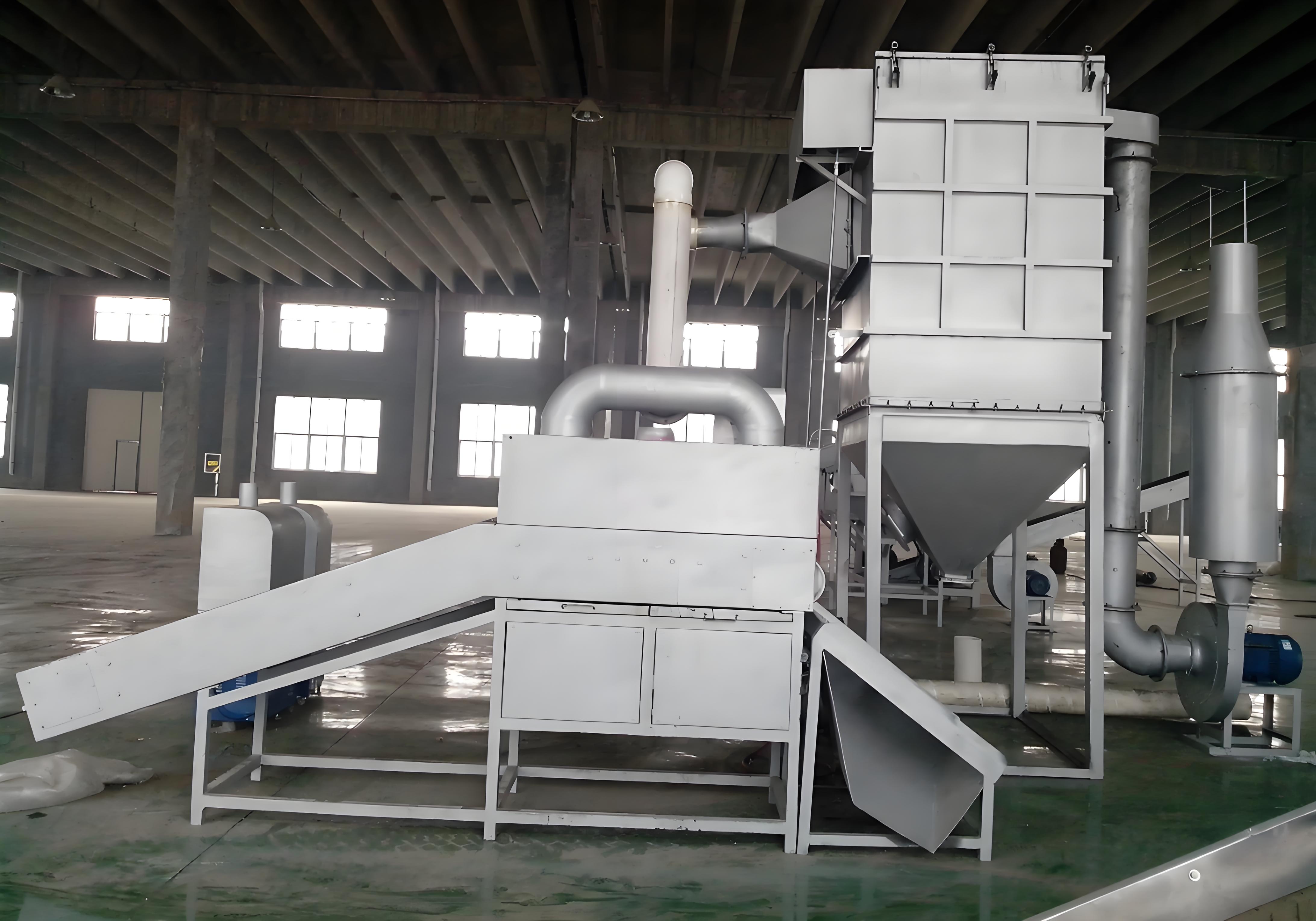

Circuit board crushing and sorting production line

Circuit board crushing and sorting production line

Our equipment is designed for various scrapped circuit boards, copper-clad boards, and other waste materials that are not suitable for processing. Large and small materials can be crushed at the same time without classification, and various copper and resin powders can be separated and recycled in a dry manner. It has the advantages of large production volume, low power consumption, high sorting rate, one-time feeding, multi-machine collaboration (crushing, feeding, dust collection and dry separation), fully automatic intelligent control, only one person needs to feed to start production, and advanced dust collection device. It not only improves the quality of recycled copper and resin powder, but also can recycle and reuse copper, while solving environmental pollution.

Working Principle

After the materials are crushed and pulverized in the early stage, the two materials of different densities are deflected by the amplitude motion on the screen surface with a certain angle under the action of wind, so that the copper particles with high density stick to the screen surface and move toward the copper outlet, and the resin particles with low density float on the copper particles and flow toward the resin outlet, and then pass through the electrostatic separator to achieve the purpose of separating copper and resin powder.

Applicable scope:

various circuit board materials, etc.

Main equipment composition

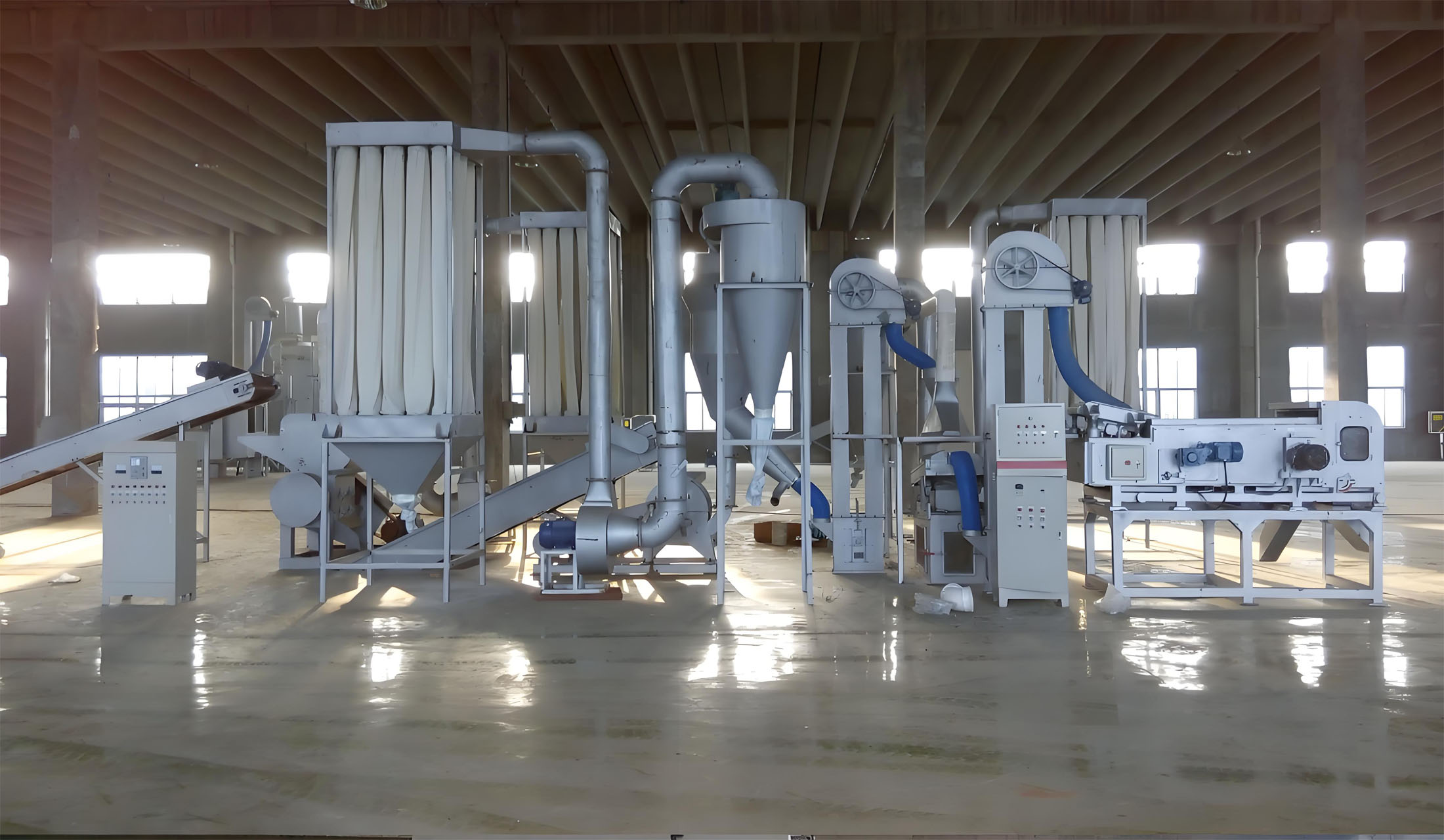

Crushing and sorting equipment mainly consists of the following parts: conveyor-shredder-crusher-crusher-wind conveyor-vibrating screen-gravity separator-electrostatic separator-dust collector-fan-connecting pipeline

The electronic waste recycling system helps the sustainable development of the ecology.

One machine, all your E-scrap solutions
